පිරිවිතර
කැපීම වේග: වෙනස් කළ හැකිය
ග්රැෆික් ආකෘතිය සහාය: AI
යෙදුම: ලේසර් කැපීම
තත්ත්වය: නව
ගැඹුර කැපීම: වෙනස් වේ
CNC හෝ නැත: ඔව්
සිසිලන මාදිලිය: වායු සිසිලනය
පාලක මෘදුකාංග: සයිප්රස්ට්
ප්රභව ස්ථානය: ඇන්හයි, චීනය (මාදිලිය)
වෙළඳ නාමය: ACCURL
Certification:CE, ISO, ECA
Laser power:60w/80w/100w/130w/150w
නම: ෆැබ්රික් ලේසර් කැපුම් යන්ත්රය
Function:Cutting Nonmetal Materials
Laser head:Precitec
Laser tube:EFR
Driving system:Servo
වර්ගය: ලේසර් යන්ත්රය
Control system:DPS System
මූල පදය: ෆැබ්රික් ලේසර් කපනය
Working table:Honeycomb
පසු විකුණුම් සේවාව සපයන ලද්දේ: විදේශීය සේවා යෝජක යන්ත්ර සඳහා ඉංජිනේරුවන්ට ලබා ගත හැකිය
Product Overviews

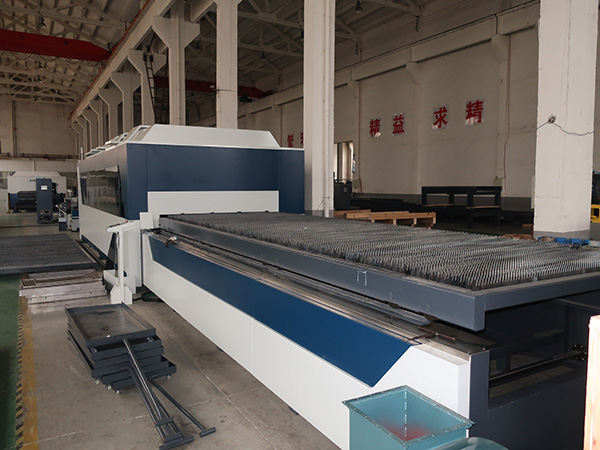

The principle of Fiber laser cutting machine
Fiber laser generator is a new type of international development of the new fiber laser output of high energy density of the laser beam, and gathered on the surface of the workpiece, the upper area of the workpiece is instantaneous melting and gasification ultrafine focus spot irradiated by CNC machine system mobile spot irradiation position and automatic cutting.
The components
l Fiber laser
l Cutting table
l CNC system
l Cooling system
l Assist gas
The advantage
l Cutting journey can be 3015 and 2040, the power of fiber laser can be 500w-6000w
l The lowest use cost: the machine power consumption is only 20-30% of the same kind of CO2 laser cutting machine
l The highest stability: use the import original factory package fiber laser, stable performance, useful life can be 100000 hours
l Highest cutting speed: high speed, high efficiency, the speed can be tens of meters per minute, it is twice of CO2 laser cutting
l Lowest maintenance cost, fiber transmission, no need laser gas, can save a lot of cost.
l Excellent beam quality, small focusing sport, good cutting edge.
l Adapt imported guide transmission and servo motor, high cutting accuracy
Cutting materials
The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.
Application industry
The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.
The instructions of products
ෆයිබර් ලේසර්
l Power can be 500W/700W/1000W/1200W/2000W…6000W
l Can use IPG(Germany),nLIGHT(USA), Raycus (China)
l Need to match water chiller (Inside)
l Air conditioning (Outside)
Body of cutting table
l Body of cutting table: The body is monoblock cast, use 300 cast iron, others often use 250 cast iron
l X-axis and Z-axis use 500 ductile cast iron, none out of shape.
l All the cast parts has been processed by 600°C - 650°C high temperature annealing treatment, can keep the machine not out of shape, lose the internal stress.
l All the parts is processed by milling planer, the max tolerance can be 0.01mm in 1m
l With exhaust system
| Character | Data |
| Process dimension | 3000mm * 1500mm |
| X-axis journey | 3000mm |
| Y-axis journey | 1500mm |
| Z-axis journey | 120mm |
| X / Y ස්ථානගත කිරීෙම් නිරවද්යතාව | ± 0.02mm |
| Z-axis positioning accuracy | ± 0.008mm |
| X/Y repeatability positioning accuracy | ±0.015 |
| උපරිම වේගය | 50m / min |
| X/Y max acceleration | 1G |
| Cutting table max load | 1t |
| යන්ත්රයේ බර | 4t/6t |
| ලේසර් බලය | 500w,700w,1000w |
| Size (length × weight × height) | 4500 ×2500 ×2300 (no switchboard) 4t |
| Size (length × weight × height) | 9900 ×2500 ×2300 (with switchboard) 6t |
අලෙවියෙන් පසු සේවාව
Head Science and Techology Co, always stick to service principle"Comfortable service,Easy usng ,assured quality" to service every clients.
A."One to One " exclusive services.We have a professional after-sales service team to provide "one to one "lifelong long technical support and maintenance training .let customers fully master fiber laser cutting skill.providing techonical support to clients during the whore process.
B.Instant response .No matter what kind of problems cients meet. We will offer service in solving problems as purpose, give reply and solve problem within 2 hours after receiving the feedback.
C.Spare parts green channel.We have protable,persionalized supply process and the exclusive spare parts supply base,providing high quality accessories, supplies and services to customers,let clients produce without any worries.
